	Curtiss P-36

At the beginning of the 1930s, the USAAC had realized that the development of the biplane had reached its zenith, and it was time to progress to monoplanes as pursuit aircraft. With the introduction of the Boeing B-9 monoplane bomber in 1931, the USAAC was faced with the fact that its new generation of bombers were faster than its current stable of biplane fighters. While the Fokker Eindecker E.III monoplane fighter had been introduced during World War I, the general consensus was that monoplane fighters were not strong enough to meet the demands required in combat. However, developments in engine technology and the requirements of faster aircraft, required a paradigm shift, and compelled the USAAC to seek more advanced designs. The Boeing P-26 Peashooter was first step of this concept, as it was the first all metal, pursuit monoplane, for the USAAC. However, it was conservative in design, with fixed gear and external wing bracing—although the P-26 would prove to be a gallant fighter against Japanese aircraft, in the Philippines, at the beginning of World War II—it was for the most part, an interim aircraft.¹ As the-mid thirties approached, the USAAC held a competition to develop a replacement for the P-26.

In 1935, Curtiss, Seversky, and Northrop submitted aircraft for a USAAC design competition fly-off. Seversky entered a fixed-gear, two-seat SEV-2XD fighter, but switched to the single-seat SEV-1XP, after eyeing the Curtiss Model 75 and Northrop 3A, both of which had retractable landing gear. The switch by Seversky was allowed since it was badly damaged, perhaps deliberately, on the way to Wright Field to the competition on June 18,1935.² This drew protests from Curtiss,³ but the final fly-off was postponed until April 1936, after the Northrop 3A crashed into the sea. The delay allowed Seversky to modify its entry, with a different tail-plane and engine, designating it the SEV-7, while Vought submitted a rebuild of the Northrop A3, the V-141. Consolidated now entered the competition and submitted the P-30, while Curtiss submitted the Model 75, with a new Wright XR-1820-39 engine. The Seversky Aircraft Corporation won the USAAC's competition, and Curtiss was awarded a contract for just three examples of their design, to be powered by a derated version of the 1,050-hp (783-kW) Pratt & Whitney R-1830-13 Twin Wasp radial engine, and to be used for test and evaluation under the designation Y1P-36.

The aircraft was of all metal construction, except for the control surfaces which were fabric covered. Portions of the outer wing were sealed to provide flotation in case the aircraft were to ditch in the water. The aircraft was equipped with trailing-edge split-flaps that were hydraulically operated. The main landing gear was retractable that swung aft from the leading edge and then rotated 90 degrees, so that the main wheels would lie flush in the undersurface of the wing, unlike the Seversky P-35, which had half of the wheel exposed to the air stream. The swing-aft-and-turn landing gear was a Boeing development that was also adopted for the Vought SB2U Chesapeake and F4U Corsair of which Boeing received a royalty for all installations used by other manufactures.⁴ Armament was the USAAC standard as were other US competitors at the time of a single 0.30 caliber and a single 0.50 caliber machine guns that fired through the propeller arc. Armament was completely inadequate when compared to the contemporary Hawker Hurricane, and the Messerschmitt Bf 109, but the US maintained this standard for several more years.⁵

The P-36 failed to emulate the performance of contemporary fighters being developed at the time such as the Messerschmitt Bf 109, and Hawker Hurricane, for at that era of fighter development, designers had not yet succeeded in realizing the full potential of bluff, radial air-cooled engines. At a later date an attempt was made to upgrade the Model 75 by the installation of an Allison V-1710 turbocharged inline engine, but the prototype and a batch of service test YP-37s with the V-1710-21 engine failed to achieve a sufficiently high standard of performance and were, in any event, superseded by the P-40.

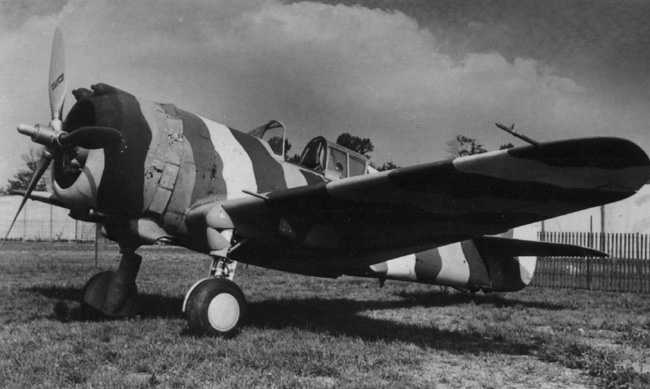

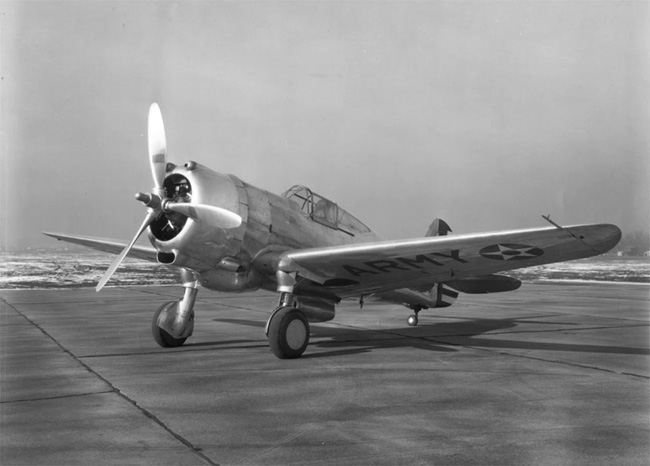

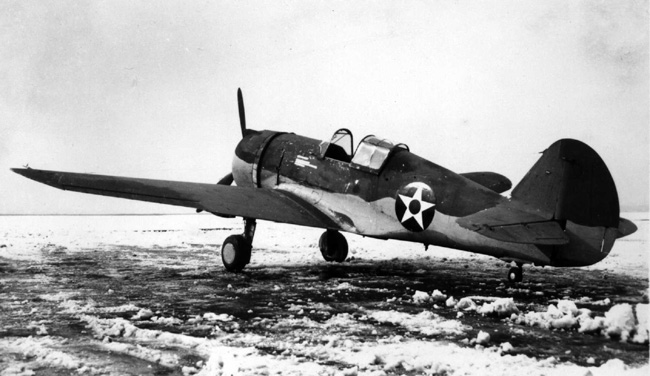

By comparison with the original Model 75 prototype, these had cockpit modifications to improve fore and aft view, and introduced a retractable tail wheel. Service testing of the Y1P-36s was considered so successful that a contract for 210 production P-36As was awarded on 7 July 1937, then the US Army's peacetime contract for pursuit aircraft. Delivery of these began in April 1938, but by late 1941 when the United States became involved in World War II, they were already considered obsolete. Circumstances compelled limited use of P-36As in the opening stage of hostilities with Japan, but they were very soon relegated for use in a training role.

Variants included a single XP-36B with a 1,000 hp (746-kW) Pratt & Whitney R-1820-25 engine, and the last 31 of the original production run were completed as P-36Cs with a more powerful Twin Wasp engine. The designations XP-36D/-36E/-36F were applied to experimental examples with differing armament.

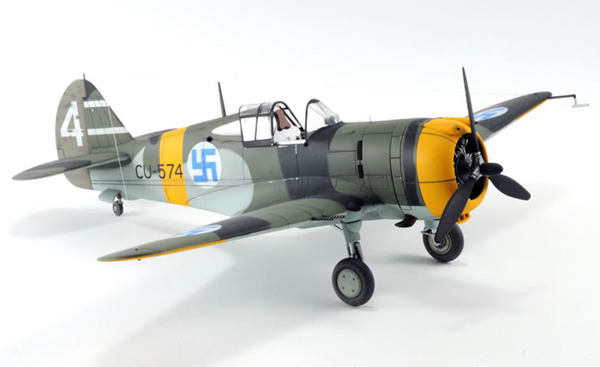

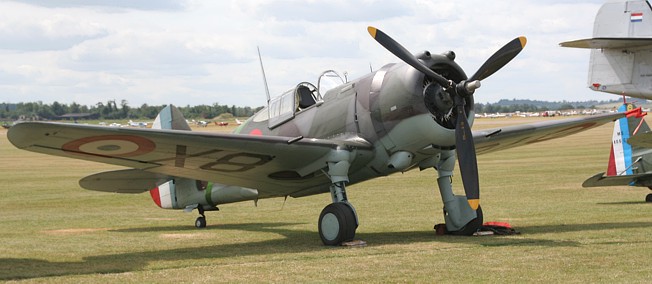

Export Hawk 75As were supplied to the French Armee de l'Air as Hawk 75A-1/ A-2/ A-3/ A-4 but the majority were transferred to the UK after the fall of France, being designated respectively Mohawk I/II/III/IV. The type was supplied also to Norway and Persia and, indirectly, served also with the air forces of Finland, India, Netherlands East Indies, Peru, Portugal, South Africa and Vichy France.

Curtiss
P-36 Specifications:

Dimensions:
P-36A
(Model 75L) Mohawk IV
(Model H75A-4)

Wing span: 37 ft 3 ½ in (11.35 m) 37 ft 3 ½ in (11.35 m)

Length: 28 ft 6 in (8.68 m) 28 ft 10 in (8.78 m)

Height: 9 ft 4 in. (2.84 m) 9 ft 6 in. (2.89 m)

Wing Area: 236 ft.² (21.92 m²) 236 ft.² (21.92 m²)

Weights:
Empty: 4,567 lb. (2,072 kg) 4,541 lb. (2,060 kg)

Gross: 5,650 lb (2,563 kg) 5,750 lb (2,608 kg)

Performance:
Cruise Speed: 270 mph (453 km/h) 262 mph (422 km/h)

Max Speed: 313 mph (504 km/h)
@ 10,000 ft (3,048 m) 323 mph (520 km/h)
@ 15,100 ft (4,602 m)

Climb Rate: 3,400 ft/min (1,036 m/min) 2,820 ft/min (860 m/min)

Service Ceiling: 34,000 ft. (10,363 m) 32,700 ft. (9,967 m)

Normal Range: 825 miles (1,328 km) 670 miles (1,078 km)

Max Range: 1,060 miles (1,706 km) 1,003 miles (1,614 km)

Powerplant:

P-36A Mohawk IV

Pratt & Whitney R-1830-30 Twin Wasp radial engine,
1,050 hp (783 kW) Pratt & Whitney R-1820-G205A Twin Wasp radial engine,
1,200 hp (895 kW)

Armament:
One 0.30 in machine gun and
one 0.50 in machine gun. Six 7.5 mm machine guns.

Curtiss P-36	Specifications:
Dimensions:
P-36A (Model 75L)	Mohawk IV (Model H75A-4)
Wing span:	37 ft 3 ½ in (11.35 m)	37 ft 3 ½ in (11.35 m)
Length:	28 ft 6 in (8.68 m)	28 ft 10 in (8.78 m)
Height:	9 ft 4 in. (2.84 m)	9 ft 6 in. (2.89 m)
Wing Area:	236 ft.² (21.92 m²)	236 ft.² (21.92 m²)
	Weights:
Empty:	4,567 lb. (2,072 kg)	4,541 lb. (2,060 kg)
Gross:	5,650 lb (2,563 kg)	5,750 lb (2,608 kg)
	Performance:
Cruise Speed:	270 mph (453 km/h)	262 mph (422 km/h)
Max Speed:	313 mph (504 km/h) @ 10,000 ft (3,048 m)	323 mph (520 km/h) @ 15,100 ft (4,602 m)
Climb Rate:	3,400 ft/min (1,036 m/min)	2,820 ft/min (860 m/min)
Service Ceiling:	34,000 ft. (10,363 m)	32,700 ft. (9,967 m)
Normal Range:	825 miles (1,328 km)	670 miles (1,078 km)
Max Range:	1,060 miles (1,706 km)	1,003 miles (1,614 km)

Powerplant:
P-36A	Mohawk IV
Pratt & Whitney R-1830-30 Twin Wasp radial engine, 1,050 hp (783 kW)	Pratt & Whitney R-1820-G205A Twin Wasp radial engine, 1,200 hp (895 kW)
Armament:
One 0.30 in machine gun and one 0.50 in machine gun.	Six 7.5 mm machine guns.

Endnotes

1. P-26 Interim Aircraft.
2. David Mondey. American Aircraft of World War II. New York, Smithmark Publishers, 1996. 213.
3. P-26 Interim Aircraft.
4. Peter M. Bowers. Aircraft In Profile, Volume 4. The Curtiss Model 75. Surrey, England; Profile Publications Ltd., 1968. 82.
5. Ibid. 83

Other Sources

1. Kenneth Munson. Fighters Between the Wars, 1919-39. New York, The Macmillan Company, 1960. 156-157.
2. Enzo Angelucci and Peter M Bowers. The American Fighter. Mila, Italy; Haynes Publishing Group., 1987. 384.

Endnotes
1. P-26 Interim Aircraft. 2. David Mondey. American Aircraft of World War II. New York, Smithmark Publishers, 1996. 213. 3. P-26 Interim Aircraft. 4. Peter M. Bowers. Aircraft In Profile, Volume 4. The Curtiss Model 75. Surrey, England; Profile Publications Ltd., 1968. 82. 5. Ibid. 83
Other Sources
1. Kenneth Munson. Fighters Between the Wars, 1919-39. New York, The Macmillan Company, 1960. 156-157. 2. Enzo Angelucci and Peter M Bowers. The American Fighter. Mila, Italy; Haynes Publishing Group., 1987. 384.
